LYNCCN WAY100.80 V24 Single V Die Hydraulic Press Brake Tooling
| Place of Origin | Anhui, China |
|---|---|
| 브랜드 이름 | LYNCCN |
| 인증 | ISO9001 |
| Minimum Order Quantity | 3 Piece |
| 가격 | 협상 가능 |
| Packaging Details | Wooden box |
| Delivery Time | 30 days |
| Payment Terms | T/T |
| Supply Ability | 500 Piece/Pieces per Month |
무료 샘플과 쿠폰을 받으려면 연락하세요.
왓츠앱:0086 18588475571
웨이 채팅: 0086 18588475571
SKYPE: sales10@aixton.com
만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.
x제품 상세 정보

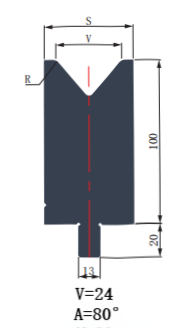

| Product Category | Press Brake Single V Die | Product Name | LYNCCN WAY100.80 V24 Single V Die Hydraulic Press Brake Tooling |
|---|---|---|---|
| Brand | LYNCCN | Height | 120mm |
| Width | 35mm | Angle | 80° |
| V Opening | 24mm | Material | 42CrMo |
| Hardness | HRC48-52 | Packing | Wooden Box |
| 강조하다 | Hydraulic Press Brake Tooling,Press Brake Tooling Hydraulic,Single V Die |
||
제품 설명
A press brake die is a tool used in a press brake machine to bend sheet metal into desired angles and shapes. It consists of a punch (upper tool) and a die (lower tool), which work together to form the metal. Different die shapes enable various bending techniques like V-bending, U-bending, or hemming.
This product is a single V die, CNC Press Brake tooling, CNC Hydraulic Press Brake tool, and Hydraulic Press Brake Machine tooling.
Technical Parameters:
| Product Type | LYNCCN WAY100.80 V24 Single V Die Hydraulic Press Brake Tooling |
| Length | 550mm/500mm |
| Brand | LYNCCN |
| Width | 35mm |
| Height | 120mm |
| Angle | 80° |
| V Opening | 24mm |
| Hardness | HRC48-52 |
| Heat Treatment | Induction Hardening |
| Material | 42CrMo |
| Max. Load | 100T/M |
| Packing | Wooden Box |
Standard Segmentation:
500mm
515mm
550mm Segmentation
Applications:
Press brake tooling are widely used in sheet metal fabrication, enabling precise bending for enclosures, brackets, and panels across multiple industries including electronics, electrical, and custom parts manufacturing.
